org.dapper.ui

Class FlowPane

java.lang.Object

java.awt.Component

java.awt.Container

javax.swing.JComponent

javax.swing.JTabbedPane

org.dapper.ui.FlowPane

All Implemented Interfaces:

ActionListener, ContainerListener, WindowListener, ImageObserver, MenuContainer, Serializable, EventListener, Observer, Accessible, SwingConstants

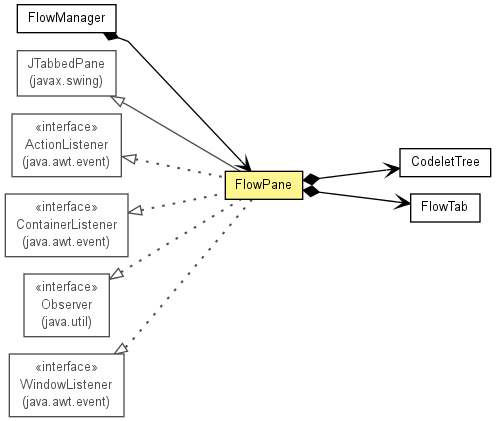

public class FlowPane
extends JTabbedPane
implements Observer, ContainerListener, ActionListener, WindowListener

A subclass of JTabbedPane that serves as an index of FlowTabs.

See Also:

Serialized Form

Nested Class Summary

Nested classes/interfaces inherited from class javax.swing.JTabbedPane

JTabbedPane.AccessibleJTabbedPane, JTabbedPane.ModelListener

Nested classes/interfaces inherited from class javax.swing.JComponent

JComponent.AccessibleJComponent

Nested classes/interfaces inherited from class java.awt.Container

Container.AccessibleAWTContainer

Nested classes/interfaces inherited from class java.awt.Component

Component.AccessibleAWTComponent, Component.BaselineResizeBehavior, Component.BltBufferStrategy, Component.FlipBufferStrategy

Field Summary

Fields inherited from class javax.swing.JTabbedPane

changeEvent, changeListener, model, SCROLL_TAB_LAYOUT, tabPlacement, WRAP_TAB_LAYOUT

Fields inherited from class javax.swing.JComponent

accessibleContext, listenerList, TOOL_TIP_TEXT_KEY, ui, UNDEFINED_CONDITION, WHEN_ANCESTOR_OF_FOCUSED_COMPONENT, WHEN_FOCUSED, WHEN_IN_FOCUSED_WINDOW

Fields inherited from class java.awt.Component

BOTTOM_ALIGNMENT, CENTER_ALIGNMENT, LEFT_ALIGNMENT, RIGHT_ALIGNMENT, TOP_ALIGNMENT

Fields inherited from interface javax.swing.SwingConstants

BOTTOM, CENTER, EAST, HORIZONTAL, LEADING, LEFT, NEXT, NORTH, NORTH_EAST, NORTH_WEST, PREVIOUS, RIGHT, SOUTH, SOUTH_EAST, SOUTH_WEST, TOP, TRAILING, VERTICAL, WEST

Fields inherited from interface java.awt.image.ImageObserver

ABORT, ALLBITS, ERROR, FRAMEBITS, HEIGHT, PROPERTIES, SOMEBITS, WIDTH

Constructor Summary

Constructors

Constructor and Description
FlowPane(Server server) Default constructor.

Method Summary

Methods

Modifier and Type	Method and Description
void	actionPerformed(ActionEvent e) Renders the underlying Flow of the current FlowTab.
void	componentAdded(ContainerEvent e) Tries to start the rendering timer.
void	componentRemoved(ContainerEvent e) Tries to stop the rendering timer.
void	purgeCurrent() Purges the underlying Flow of the current FlowTab.
void	setAutocloseIdle(boolean autocloseIdle) Sets the idle client autoclose option.
protected void	setFlowFlags(int flowFlags) Sets the bit vector of FlowEvent interest flags.
void	setRemoveFinished(boolean removeFinished) Sets an option regulating whether FlowTabs corresponding to finished Flows should be removed.
void	takeScreenshot() Takes a screenshot of the underlying Flow of the current FlowTab.
protected void	tryStartTimer() Tries to start the rendering timer.
protected void	tryStopTimer() Tries to stop the rendering timer.
void	update(Observable o, Object arg) Observes Flow creation requests.
void	windowActivated(WindowEvent e) Tries to start the rendering timer.
void	windowClosed(WindowEvent e) Destroys the underlying Server instance.
void	windowClosing(WindowEvent e) Does nothing.
void	windowDeactivated(WindowEvent e) Tries to stop the rendering timer.
void	windowDeiconified(WindowEvent e) Does nothing.
void	windowIconified(WindowEvent e) Does nothing.
void	windowOpened(WindowEvent e) Does nothing.

Methods inherited from class javax.swing.JTabbedPane

add, add, add, add, add, addChangeListener, addTab, addTab, addTab, createChangeListener, fireStateChanged, getAccessibleContext, getBackgroundAt, getBoundsAt, getChangeListeners, getComponentAt, getDisabledIconAt, getDisplayedMnemonicIndexAt, getForegroundAt, getIconAt, getMnemonicAt, getModel, getSelectedComponent, getSelectedIndex, getTabComponentAt, getTabCount, getTabLayoutPolicy, getTabPlacement, getTabRunCount, getTitleAt, getToolTipText, getToolTipTextAt, getUI, getUIClassID, indexAtLocation, indexOfComponent, indexOfTab, indexOfTab, indexOfTabComponent, insertTab, isEnabledAt, paramString, remove, remove, removeAll, removeChangeListener, removeTabAt, setBackgroundAt, setComponentAt, setDisabledIconAt, setDisplayedMnemonicIndexAt, setEnabledAt, setForegroundAt, setIconAt, setMnemonicAt, setModel, setSelectedComponent, setSelectedIndex, setTabComponentAt, setTabLayoutPolicy, setTabPlacement, setTitleAt, setToolTipTextAt, setUI, updateUI

Methods inherited from class javax.swing.JComponent

addAncestorListener, addNotify, addVetoableChangeListener, computeVisibleRect, contains, createToolTip, disable, enable, firePropertyChange, firePropertyChange, firePropertyChange, fireVetoableChange, getActionForKeyStroke, getActionMap, getAlignmentX, getAlignmentY, getAncestorListeners, getAutoscrolls, getBaseline, getBaselineResizeBehavior, getBorder, getBounds, getClientProperty, getComponentGraphics, getComponentPopupMenu, getConditionForKeyStroke, getDebugGraphicsOptions, getDefaultLocale, getFontMetrics, getGraphics, getHeight, getInheritsPopupMenu, getInputMap, getInputMap, getInputVerifier, getInsets, getInsets, getListeners, getLocation, getMaximumSize, getMinimumSize, getNextFocusableComponent, getPopupLocation, getPreferredSize, getRegisteredKeyStrokes, getRootPane, getSize, getToolTipLocation, getToolTipText, getTopLevelAncestor, getTransferHandler, getVerifyInputWhenFocusTarget, getVetoableChangeListeners, getVisibleRect, getWidth, getX, getY, grabFocus, isDoubleBuffered, isLightweightComponent, isManagingFocus, isOpaque, isOptimizedDrawingEnabled, isPaintingForPrint, isPaintingOrigin, isPaintingTile, isRequestFocusEnabled, isValidateRoot, paint, paintBorder, paintChildren, paintComponent, paintImmediately, paintImmediately, print, printAll, printBorder, printChildren, printComponent, processComponentKeyEvent, processKeyBinding, processKeyEvent, processMouseEvent, processMouseMotionEvent, putClientProperty, registerKeyboardAction, registerKeyboardAction, removeAncestorListener, removeNotify, removeVetoableChangeListener, repaint, repaint, requestDefaultFocus, requestFocus, requestFocus, requestFocusInWindow, requestFocusInWindow, resetKeyboardActions, reshape, revalidate, scrollRectToVisible, setActionMap, setAlignmentX, setAlignmentY, setAutoscrolls, setBackground, setBorder, setComponentPopupMenu, setDebugGraphicsOptions, setDefaultLocale, setDoubleBuffered, setEnabled, setFocusTraversalKeys, setFont, setForeground, setInheritsPopupMenu, setInputMap, setInputVerifier, setMaximumSize, setMinimumSize, setNextFocusableComponent, setOpaque, setPreferredSize, setRequestFocusEnabled, setToolTipText, setTransferHandler, setUI, setVerifyInputWhenFocusTarget, setVisible, unregisterKeyboardAction, update

Methods inherited from class java.awt.Container

addContainerListener, addImpl, addPropertyChangeListener, addPropertyChangeListener, applyComponentOrientation, areFocusTraversalKeysSet, countComponents, deliverEvent, doLayout, findComponentAt, findComponentAt, getComponent, getComponentAt, getComponentAt, getComponentCount, getComponents, getComponentZOrder, getContainerListeners, getFocusTraversalKeys, getFocusTraversalPolicy, getLayout, getMousePosition, insets, invalidate, isAncestorOf, isFocusCycleRoot, isFocusCycleRoot, isFocusTraversalPolicyProvider, isFocusTraversalPolicySet, layout, list, list, locate, minimumSize, paintComponents, preferredSize, printComponents, processContainerEvent, processEvent, removeContainerListener, setComponentZOrder, setFocusCycleRoot, setFocusTraversalPolicy, setFocusTraversalPolicyProvider, setLayout, transferFocusDownCycle, validate, validateTree

Methods inherited from class java.awt.Component

action, add, addComponentListener, addFocusListener, addHierarchyBoundsListener, addHierarchyListener, addInputMethodListener, addKeyListener, addMouseListener, addMouseMotionListener, addMouseWheelListener, bounds, checkImage, checkImage, coalesceEvents, contains, createImage, createImage, createVolatileImage, createVolatileImage, disableEvents, dispatchEvent, enable, enableEvents, enableInputMethods, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, getBackground, getBounds, getColorModel, getComponentListeners, getComponentOrientation, getCursor, getDropTarget, getFocusCycleRootAncestor, getFocusListeners, getFocusTraversalKeysEnabled, getFont, getForeground, getGraphicsConfiguration, getHierarchyBoundsListeners, getHierarchyListeners, getIgnoreRepaint, getInputContext, getInputMethodListeners, getInputMethodRequests, getKeyListeners, getLocale, getLocation, getLocationOnScreen, getMouseListeners, getMouseMotionListeners, getMousePosition, getMouseWheelListeners, getName, getParent, getPeer, getPropertyChangeListeners, getPropertyChangeListeners, getSize, getToolkit, getTreeLock, gotFocus, handleEvent, hasFocus, hide, imageUpdate, inside, isBackgroundSet, isCursorSet, isDisplayable, isEnabled, isFocusable, isFocusOwner, isFocusTraversable, isFontSet, isForegroundSet, isLightweight, isMaximumSizeSet, isMinimumSizeSet, isPreferredSizeSet, isShowing, isValid, isVisible, keyDown, keyUp, list, list, list, location, lostFocus, mouseDown, mouseDrag, mouseEnter, mouseExit, mouseMove, mouseUp, move, nextFocus, paintAll, postEvent, prepareImage, prepareImage, processComponentEvent, processFocusEvent, processHierarchyBoundsEvent, processHierarchyEvent, processInputMethodEvent, processMouseWheelEvent, remove, removeComponentListener, removeFocusListener, removeHierarchyBoundsListener, removeHierarchyListener, removeInputMethodListener, removeKeyListener, removeMouseListener, removeMouseMotionListener, removeMouseWheelListener, removePropertyChangeListener, removePropertyChangeListener, repaint, repaint, repaint, resize, resize, setBounds, setBounds, setComponentOrientation, setCursor, setDropTarget, setFocusable, setFocusTraversalKeysEnabled, setIgnoreRepaint, setLocale, setLocation, setLocation, setName, setSize, setSize, show, show, size, toString, transferFocus, transferFocusBackward, transferFocusUpCycle

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Constructor Detail

FlowPane

public FlowPane(Server server)

Default constructor.

Method Detail

setRemoveFinished

public void setRemoveFinished(boolean removeFinished)

Sets an option regulating whether FlowTabs corresponding to finished Flows should be removed.

setAutocloseIdle

public void setAutocloseIdle(boolean autocloseIdle)

Sets the idle client autoclose option.

setFlowFlags

protected void setFlowFlags(int flowFlags)

Sets the bit vector of FlowEvent interest flags.

takeScreenshot

public void takeScreenshot()

Takes a screenshot of the underlying Flow of the current FlowTab.

purgeCurrent

public void purgeCurrent()

Purges the underlying Flow of the current FlowTab.

update

public void update(Observable o,
          Object arg)

Observes Flow creation requests.

Specified by:

update in interface Observer

actionPerformed

public void actionPerformed(ActionEvent e)

Renders the underlying Flow of the current FlowTab.

Specified by:

actionPerformed in interface ActionListener

componentAdded

public void componentAdded(ContainerEvent e)

Tries to start the rendering timer.

Specified by:

componentAdded in interface ContainerListener

componentRemoved

public void componentRemoved(ContainerEvent e)

Tries to stop the rendering timer. Purges the underlying Flow of the removed FlowTab.

Specified by:

componentRemoved in interface ContainerListener

windowActivated

public void windowActivated(WindowEvent e)

Tries to start the rendering timer.

Specified by:

windowActivated in interface WindowListener

windowDeactivated

public void windowDeactivated(WindowEvent e)

Tries to stop the rendering timer.

Specified by:

windowDeactivated in interface WindowListener

windowClosed

public void windowClosed(WindowEvent e)

Destroys the underlying Server instance.

Specified by:

windowClosed in interface WindowListener

tryStartTimer

protected void tryStartTimer()

Tries to start the rendering timer.

tryStopTimer

protected void tryStopTimer()

Tries to stop the rendering timer.

windowClosing

public void windowClosing(WindowEvent e)

Does nothing.

Specified by:

windowClosing in interface WindowListener

windowDeiconified

public void windowDeiconified(WindowEvent e)

Does nothing.

Specified by:

windowDeiconified in interface WindowListener

windowIconified

public void windowIconified(WindowEvent e)

Does nothing.

Specified by:

windowIconified in interface WindowListener

windowOpened

public void windowOpened(WindowEvent e)

Does nothing.

Specified by:

windowOpened in interface WindowListener
